Code produit : VF--ZCC-WS35-CU

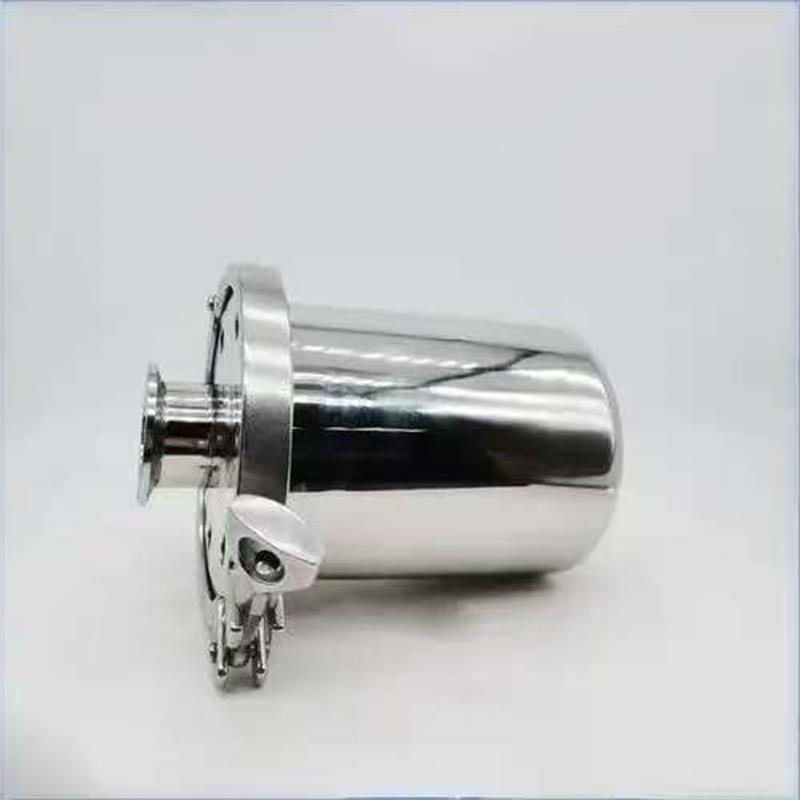

Sanitary adjustable breather valve
Product model: HS-HX
Product diameter: DN25-DN100
Product pressure: 10bar
Product material: 304/316L
Connection type: Clamp, welding, thread,3A BPE DIN SMS IDF ISO
Product sealing: EPDM, FPM, HNBR
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Produit | Code produit | Pureté | Taille | Nous contacter |
Product Details
Youdaoplaceholder0 Sanitary adjustable breather valve is a valve specifically designed to meet high hygiene requirements and is widely used in the food, pharmaceutical, biotechnology, cosmetics and other industries. Its main functions include breaking the vacuum and draining to maintain pressure balance within the system and to prevent contaminants from entering
Characteristics
Precise pressure regulation
It has the adjustable setting function of positive pressure and negative pressure, and the pressure parameters can be flexibly adjusted according to actual needs. The pressure setting range is 0.5...... 2bar, vacuum setting range 0.3...... 0.9bar, which can precisely meet the requirements of different equipment and processes.
Multiple specifications and interfaces
It offers a wide range of specifications, from 1" to 4", that is, DN25 to DN100, which can be adapted to containers and piping systems of different scales. The interface forms are diverse, including clamps, welding, threading, DIN, SMS, IDF, ISO, etc., which facilitate connection with various devices. It is easy to install and highly adaptable.
High-quality materials and gaskets
It is made of high-quality stainless steel materials such as ASTM 304/1.4301, 316L1.4404, and has excellent corrosion resistance and hygiene performance. The gaskets are made of EPDM and FPM materials, ensuring excellent sealing performance and also adapting to different working environments and media.
Wide temperature operating range
It can operate stably within the temperature range of -10℃ to 130℃, and is capable of adapting to various working temperature conditions. Whether in low-temperature environments or high-temperature working conditions, it can ensure the normal performance and reliability of the valve.
Ensure the safety of the equipment
Through precise pressure regulation and automatic vacuum response functions, it effectively prevents equipment damage and safety accidents caused by abnormal pressure in pressure vessels or pipeline systems, extends the service life of equipment, and reduces maintenance costs and production risks.
Meet the process requirements
The adjustable pressure setting can well adapt to the requirements of various production processes, provide a stable pressure environment for different production processes, and improve production efficiency and product quality.
Hygienic and reliable
The all-stainless steel material and hygienic design comply with the strict hygiene standards of the food, beverage, pharmaceutical and other industries, preventing product contamination and ensuring the hygiene and safety of the production process, providing consumers with reliable products.
Application field
Sanitary adjustable breather valves are widely used in various pressure vessels or pipeline systems. It plays an important role in industrial fields such as food processing, beverages and pharmaceuticals. It can achieve precise pressure control through adjustable Settings of negative pressure (vacuum degree) and positive pressure. For example, when the pressure is higher than the set pressure (standard 1bar, and the pressure can be adjusted and set), exhaust can be released; when it is lower than the set pressure, it will be closed. When vacuum (standard -0.9bar, and the vacuum degree can be adjusted and set) is generated in the pipeline system, the valve opens automatically. This not only ensures the safe operation of the equipment and related instruments, but also well meets the demands of various complex production processes. Its all-stainless steel material and hygienic design make it perfectly suitable for these industries with extremely high hygiene requirements.
