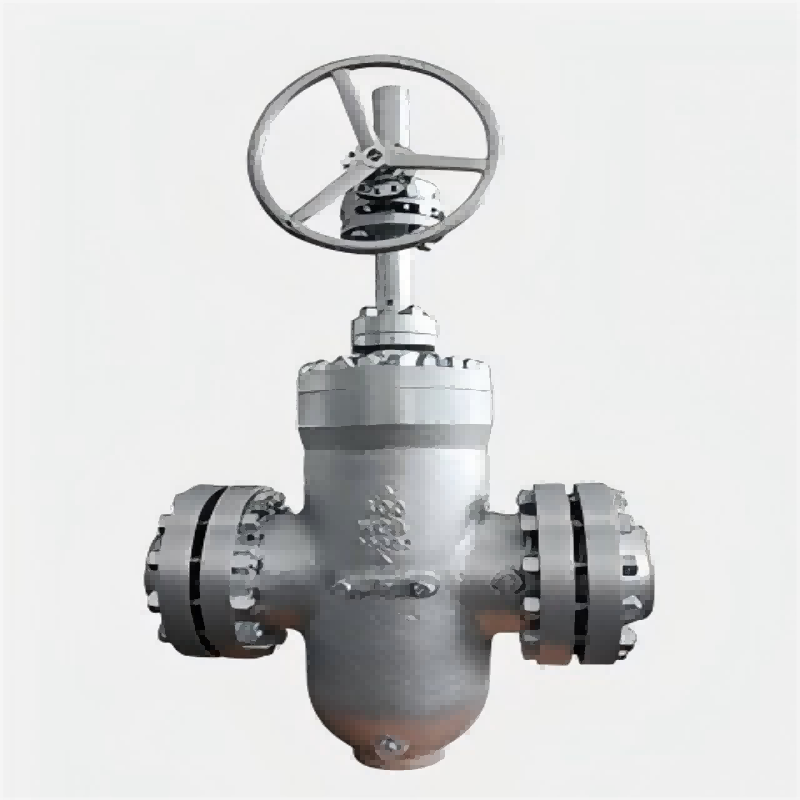

Code produit : VF--ZCC-Z48-CU
Size range: NPS 2~48 / CLASS 150~1500
Structure type: Single ram, double ram
Seal type: soft seal, hard seal
Operation mode: hand wheel, gear box
Design standard: API6D, ASME B16.34
Connecting end: ASME B16.5, ASME B16.47, MSS SP-44
Inspection and testing: API 6D
Pour toute demande de services personnalisés, veuillez nous contacter. Nous vous communiquerons le prix et la disponibilité sous 24 heures.
| Produit | Code produit | Pureté | Taille | Nous contacter |
1. Full diameter design, easy to clean the pipeline
2. Double blocking and draining structure.
3. Optional soft embedded seat + O-ring seal or hard covered seat + graphite seal structure
4. The valve body is cast, the gate is forged or cast, and the seat ring is all forged
5. Fire resistant design, in accordance with API 607/API 6FA
6. Ram Single or double ram is optional
7. Automatic overpressure discharge in the middle cavity, with a drain hole at the bottom
8. The valve stem is arranged with the sealing structure, and the packing and O-ring are double sealed; The valve seat and stem are provided with an emergency grease sealing structure and device
9. Switch flexible, easy to operate, long life
1. Full diameter design, easy to clean the pipeline
2. Double blocking and draining structure.
3. Optional soft embedded seat + O-ring seal or hard covered seat + graphite seal structure
4. The valve body is cast, the gate is forged or cast, and the seat ring is all forged
5. Fire resistant design, in accordance with API 607/API 6FA
6. Ram Single or double ram is optional
7. Automatic overpressure discharge in the middle cavity, with a drain hole at the bottom
8. The valve stem is arranged with the sealing structure, and the packing and O-ring are double sealed; The valve seat and stem are provided with an emergency grease sealing structure and device
9. Switch flexible, easy to operate, long life
