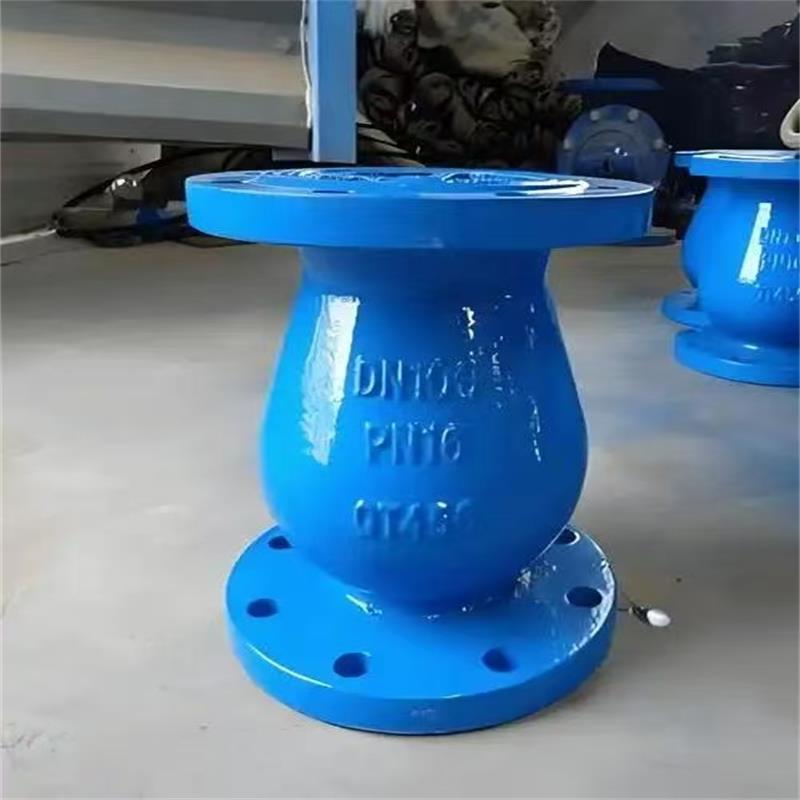

Axial nozzle check valve

Axial nozzle check valve product features：

1.   Streamlined internal surface design, flow resistance is small;

2.   Stroke is short when opening and closing;

3.   Spring loaded disc design, is not easy to produce water hammer;

4.   Soft seal design can be chosen;

Axial nozzle check valve is a special check valve, its structure is mainly composed of valve body, valve cover, valve core, spring, sealing ring and so on.    The valve body and bonnet are usually made of cast iron, cast steel, stainless steel and other materials.    There are inlets and outlets inside the valve body.    The nozzle is connected to the valve core, and the valve core is provided with a sealing ring.

The spool is the key component of the axial nozzle check valve.    When the medium flows into the valve body from the inlet, the valve core will be pushed away by the medium, and the medium will be sprayed out through the nozzle.    When the medium flows in the reverse direction, the valve core will automatically close to prevent the medium from flowing backward.    The spring is an auxiliary part of the axial nozzle check valve, and its function is to ensure that the valve core can closely fit the sealing ring in the closed state to prevent medium leakage.    The sealing ring is one of the key components of the axial nozzle check valve, and its function is to ensure the sealing between the valve core and the valve seat and prevent medium leakage.    The sealing ring is usually made of rubber, polytetrafluoroethylene and other materials, and has the characteristics of corrosion resistance and high temperature resistance.

‌ The application scope of the axial nozzle check valve ‌ mainly includes the following aspects:

‌ petroleum and natural gas industry ‌ : in the oil and natural gas long distance pipeline system, the axial nozzle check valve is widely used in the oil and gas transmission pipeline to ensure that the medium only flows forward and avoid the countercurrent damage to the pipeline system ‌ caused by pressure fluctuation

‌ chemical industry ‌ : in petrochemical plants, axial nozzle check valves are often used to control the flow direction of chemical fluids to prevent accidents ‌

‌ electric power industry ‌ : In the electric power industry, the axial nozzle check valve is used in passive core cooling system, steam generator system and spent fuel pool cooling system, etc. ‌ is the key equipment of primary circuit

‌ water supply and drainage system ‌ : in the water supply and drainage system, the axial nozzle check valve is used to prevent the backflow of the medium and prevent the sewage from flowing back upstream or into the water supply pipe ‌

‌ metallurgical industry ‌ : in the metallurgical industry of pipeline system, axial nozzle check valve because of its simple structure, flexible opening and closing, reliable sealing, long service life and so on the advantages of ‌
