Code produit : VF--QCC-Q215-CU
Design standard
Based on API 6D or as per customer requirements
Temperature range
-50.8 to 1022°F (-46 to 550°C)
Size range
NPS 1-24 (DN 25-600)
Pressure level
ASME 150 - ASME 2500
Connection method
RF, RTJ as per B16.5 & B16.47BW, Butt Welded as per B16.25SW, Socket Welded as per B16.11 Hub connection
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Produit | Code produit | Pureté | Taille | Nous contacter |

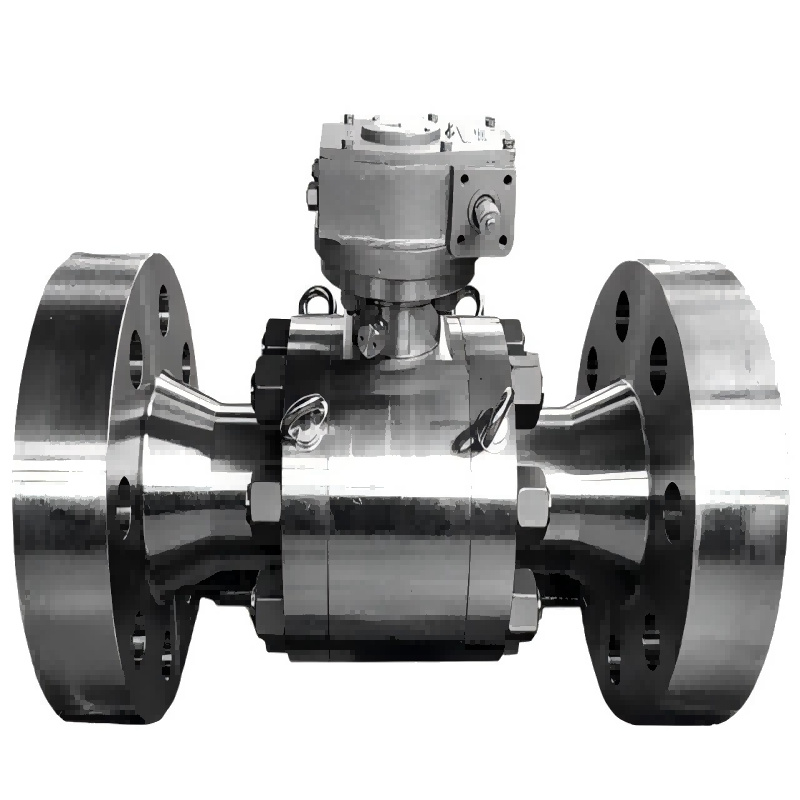

Metal valve seat ball valves and valve seats are the key components of metal valve seat ball valves. It is suitable for extreme high pressure, high temperature and grinding conditions, such as cutting or connecting solid particles, molten slurry, coal power, slag, steam water or other liquids, etc. Therefore, it features an anti-static structure, super-strong coating, full holes and small holes, complies with API607 fire resistance performance and reliable sealing performance.
Metal valve seat ball valves and valve seats are the key components of metal valve seat ball valves. It is suitable for extreme high pressure, high temperature and grinding conditions, such as cutting or connecting solid particles, molten slurry, coal power, slag, steam water or other liquids, etc. Therefore, it features an anti-static structure, super-strong coating, full holes and small holes, complies with API607 fire resistance performance and reliable sealing performance.
The metal base and ball are made of base metals and are usually coated with hard chromium, tungsten carbide, tungsten-chromium-cobalt alloy and Ni60. We have two spraying methods: thermal spraying and cold spraying, such as laser cladding, high-speed oxygen flame spraying, oxygen-acetylene flame spraying and plasma spraying processes.
Over the years, we have developed a unique ball grinding technology for coated balls and ball seats. By simultaneously rotating in the same and different directions, the roundness and adaptability of the ball and the valve seat reach perfection, achieving "zero leakage".
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
