Code produit : VF--QCC-Q223-CU

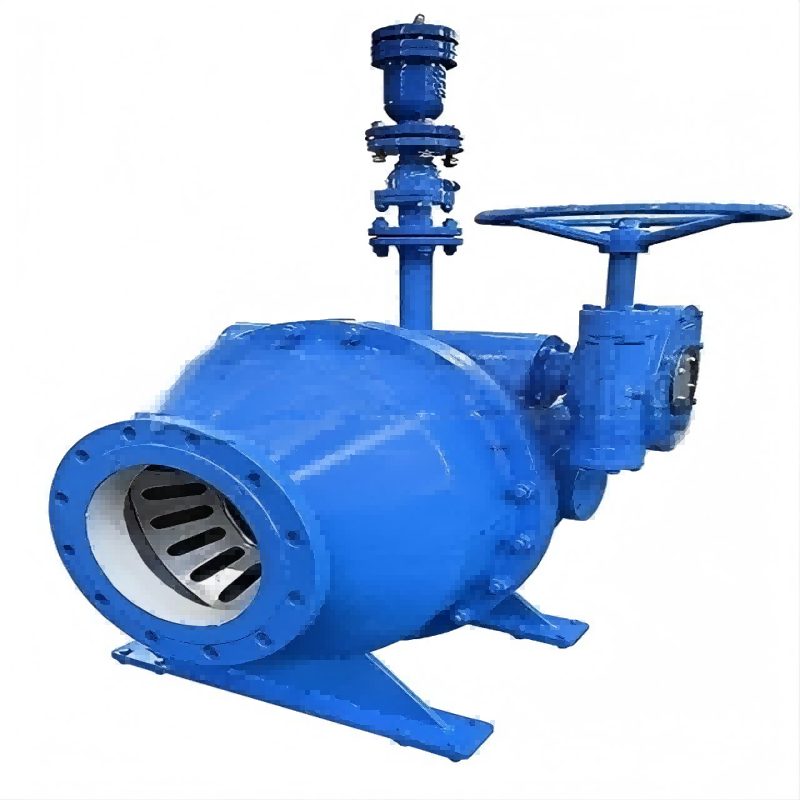

Fixed conical valve
Nominal diameter DN80~DN2000
Sealing material EPDM, NBR
Nominal pressure PN6~PN64
Connection method Fran
Applicable medium Water, raw water and cooling water
Applicable temperature 80 ℃ or less
Valve body material Ductile iron/low alloy steel/carbon steel
Drive mode Worm gear/electric/hydraulic
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Produit | Code produit | Pureté | Taille | Nous contacter |
The fixed conical valve drives the swing arm to rotate by manual worm gear, electric or hydraulic means, and then drives the sleeve gate to move linearly through the slider, thereby opening or closing the valve or throttling. Due to the adoption of the self-balancing sleeve gate disc, the hydraulic force does not act directly on the disc but on the fixed cone, resulting in a very small driving force and energy-saving effect. The sealing adopts metal-to-metal, with a floating Nitronic60 special stainless steel valve seat, resulting in very little leakage. This valve can be used as a free discharge valve at the bypass end of the turbine generator set, or as a valve installed in the pipeline for pressure reduction and flow regulation control.
The fixed conical valve drives the swing arm to rotate by manual worm gear, electric or hydraulic means, and then drives the sleeve gate to move linearly through the slider, thereby opening or closing the valve or throttling. Due to the adoption of the self-balancing sleeve gate disc, the hydraulic force does not act directly on the disc but on the fixed cone, resulting in a very small driving force and energy-saving effect. The sealing adopts metal-to-metal, with a floating Nitronic60 special stainless steel valve seat, resulting in very little leakage. This valve can be used as a free discharge valve at the bypass end of the turbine generator set, or as a valve installed in the pipeline for pressure reduction and flow regulation control.
